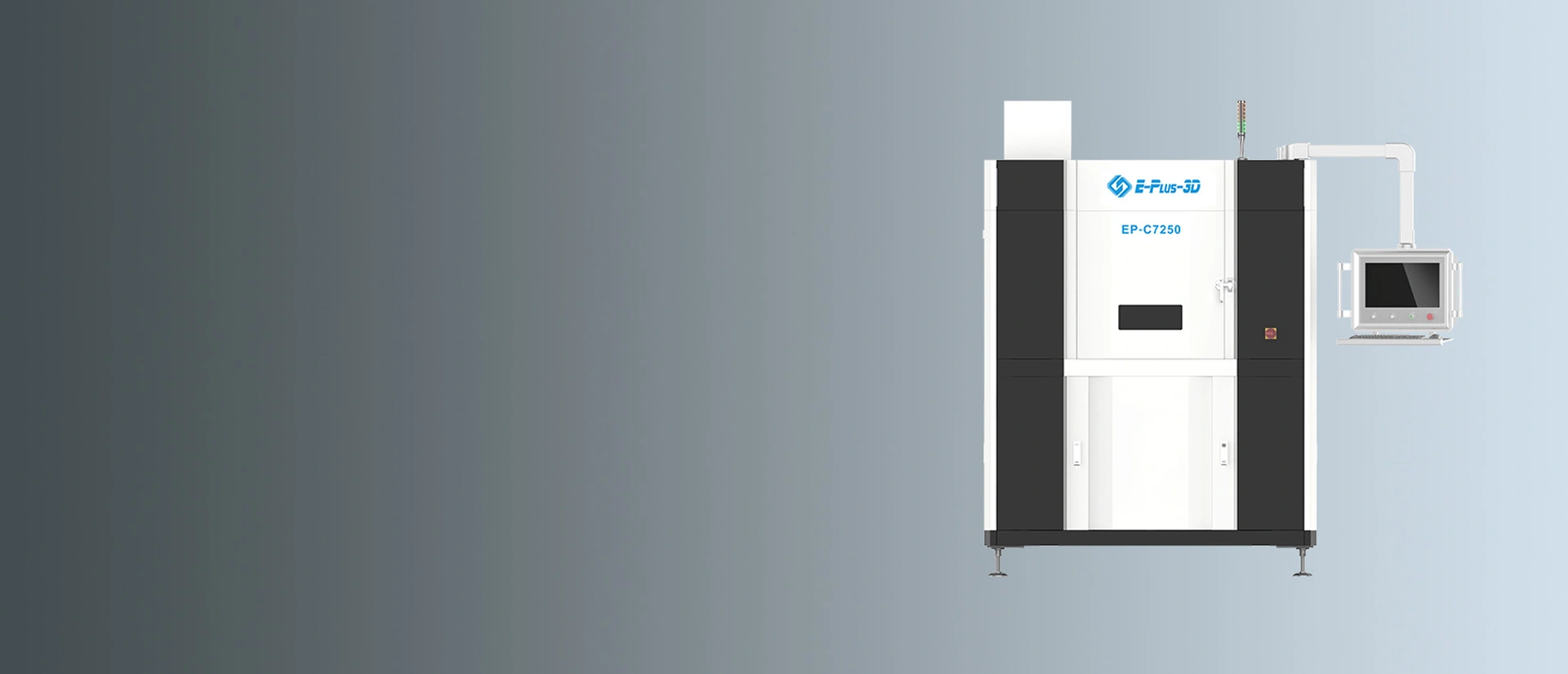

Name: EP-C7250 Wax/Sand SLS 3D Printer
Brand: Eplus3D

EP-C7250 is able to use resin sand to print sandmolds. Together with traditional casting technology, the molds is possible to cast engine blocks, cylinder heads, turbines, impellers and other components with complex structures in a very short time. The building chamber size is 720x720x500mm.

Products 

SLS 3D Printer

Features Printout Specifications Download Brochures Relate Products

EP-C7250 Wax/Sand SLS 3D Printer Features

01

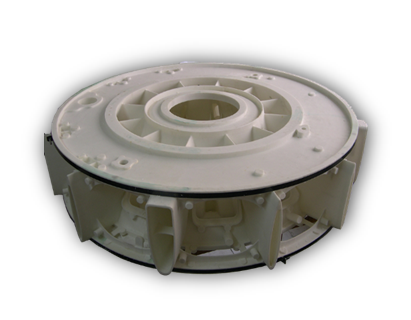

- Resin Sand based, cost-effective pattern casting material, which is compatible with most standard casting processes.It is suitable for prototype metal castings and can be produced in low to medium output without the use of tools.
Wide Application

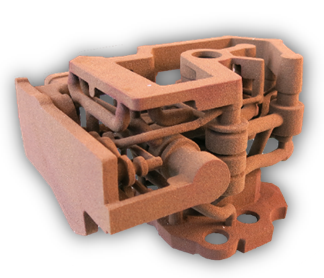

- EP-C7250 SLS 3D printer offers huge build size and can rapidly cast the parts with complex structure, like engine cylinder block, cylinder head, turbine and impeller, etc.
High Cost-Effective and Fast Prototypes
- EP-C7250 casting printer greatly reduces the R&D and tri al-producing time for casting parts with fast sand andwax mold printed directly.

What Can EP-C7250 Print?

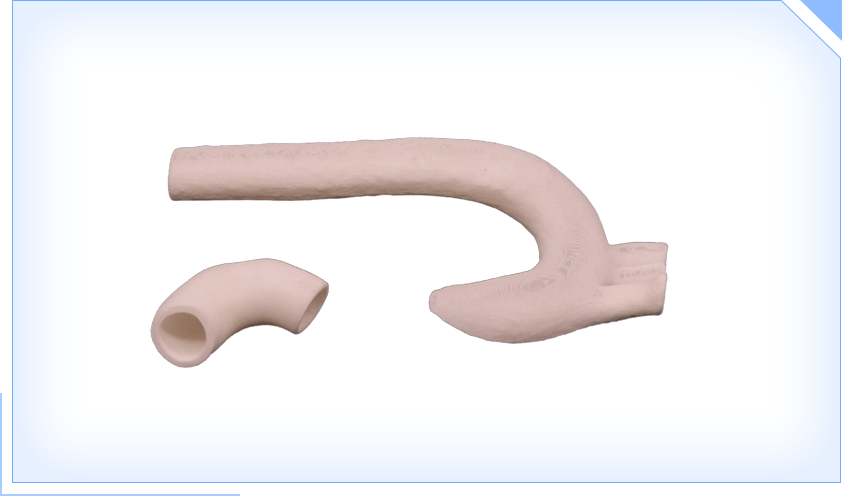

Blood Vessel

Machine: EP-C7250

Process: Polymer Powder Bed Fusion (PPBF)

Material: TPU

Size: Φ 380x100x45 mm

Printing time: 3h

Application: Medical

Technical Specifications

Model	EP-C7250
Material	PSB, PP, PE, etc.
Build Volume	720x 720x 500 mm( LxWxH )
Layer Thickness	0.08-0.3mm
Machine Weight	2100kg
Material Feed Mode	Automatic loading Bi-directional powder feeding
Laser Power	CO₂ laser, 120W
Scanning System	Dynamic scanning focus
Scanning Speed	6 m/s
Control Software	Eplus3D Printing Software
OS System Support	Windows 7
Power Supply	380V, 23A, 11kW, 50/60Hz
Temperature Regulation	Continuous real-time building surface temperature monitoring
Dimension	2000 x 1500 x 2650 mm( LxWxH )
Output Data Format	STL or another convertible file

Download Brochures

 EP-C7250 Wax/Sand SLS 3D PrinterDownload Brochures download

Your Trusted Metal 3D Printing Partner

With more than 30 years of AM technology accumulation, Eplus3D strives to bring you long-term success, from a professional start in industrial 3D Printing solutions to qualified system maintenance and globally available support. Get in touch with us today and we'll find the tailored solution to fit your needs as soon as possible!
